DFW series 15/25KV 200/600A American cable branch box

Short Description:

Product Detail

Product Tags

Product Description

The American cable distribution box produced by our company, with its excellent performance, standardized design and beautiful appearance, is widely used in cable engineering equipment in cable distribution network systems, in major industrial parks, residential areas, urban population Dense areas, commercial centers and high-rise buildings and other places. It is mainly characterized by one-way door opening and horizontal multi-pass busbar, and has obvious advantages such as small width, flexible combination, full insulation and full sealing. According to the rated current, it can be generally divided into 600A main circuit and 200A branch circuit. The 600A main circuit adopts screw-in bolted connection, and the 200A branch circuit adopts plug-in connection and can be plugged in under load.

Model Description

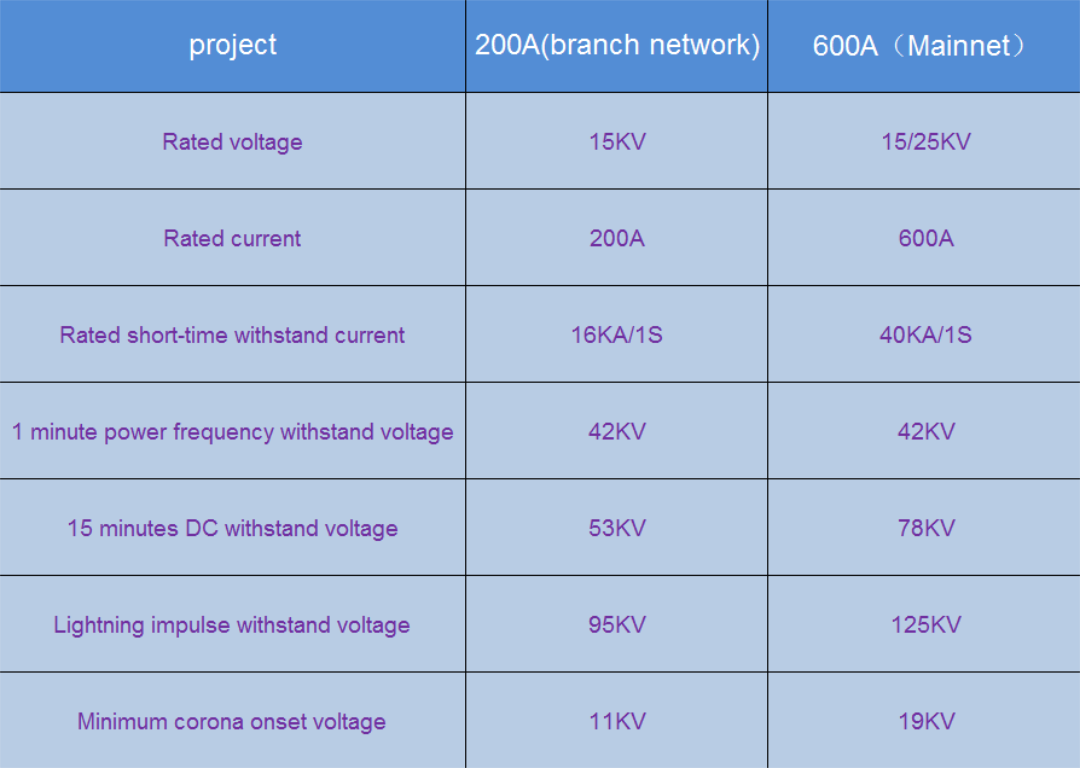

Product technical parameters and Installation foundation map

Internal configuration description

Cabinet configuration

Product structure features

1. Fully insulated and fully sealed to ensure personal safety;
2.Outdoor type, dust-proof, moisture-proof, flood-proof, corrosion-resistant, and environmentally adaptable:
3.The combination is flexible, the incoming and outgoing lines are from two to six, which can meet various wiring requirements;
4.Small size, compact structure, beautiful appearance, simple installation and maintenance-free;
5.Chargeable display;
6.Can bring short circuit indicator;
7. Lightning arresters can be equipped.

Environment condition

Ambient temperature: maximum temperature: +40℃, minimum temperature -30℃
Wind speed: quite 34m/s (not more than 700Pa)
Humidity: The average daily relative humidity is not more than 95%, and the monthly average relative humidity is not more than 95%
Anti-vibration: the horizontal acceleration is not more than 0.4m/s2, the vertical acceleration is not more than 0.15m/s2
Installation site inclination: no more than 3o
Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gas, water vapor, etc., and there should be no severe vibration at the installation site
Note: Please consult with our company when ordering this product beyond the above conditions.
