GA/YZ/JH 10KV and below 10-500mm² Electric power fittings Power line live working wiring current drainage clamp

Short Description:

Product Detail

Product Tags

Product Description

Aluminum alloy monkey head clamps are mainly used for lapping drain wires
in live work projects. GA series clamps can be used to connect drain wires in live work projects. In the process of use, no specific wire clamp installation tool is required, and only a gun-type operating lever is needed to complete the drain wire overlapping project. The operation process is simple and easy to operate.
Drainage wire clamp (hot wire clamp) is mainly used for overhead lines, which can be tapped to lead wires to fuses, lightning arresters, transformers, etc.
T-shaped live wire clamps are widely used in various live work and reconnection after power failure. The range of wire clamps can be adjusted, and the main line can be It supports the passage of wires of 25-3000mm2, and the branch line also allows the passage of wires of 70-120mm2.

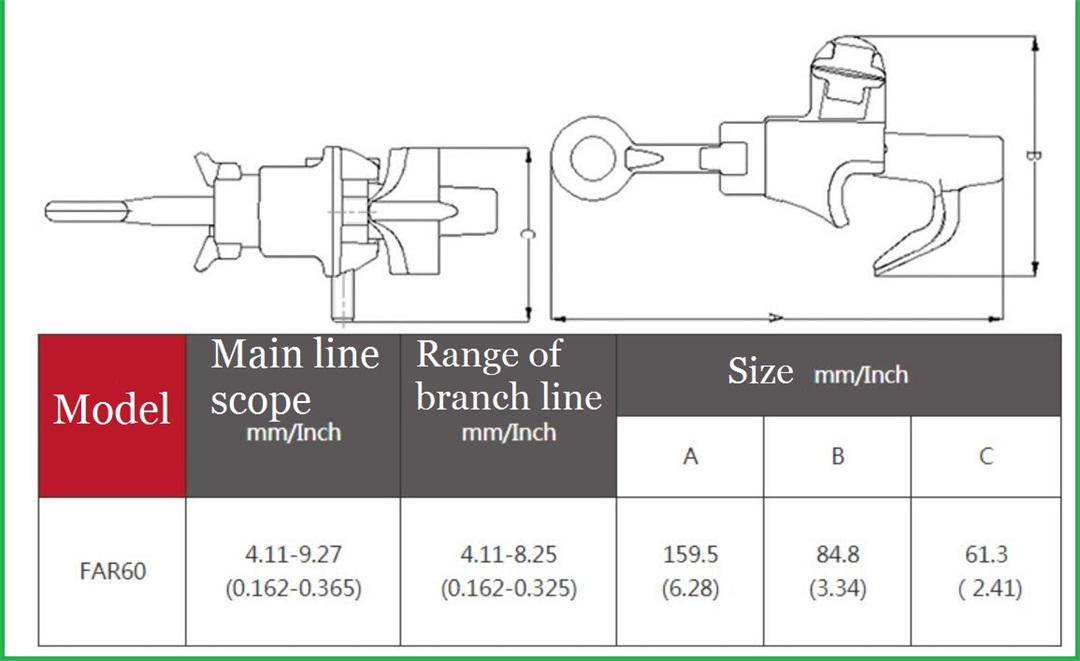

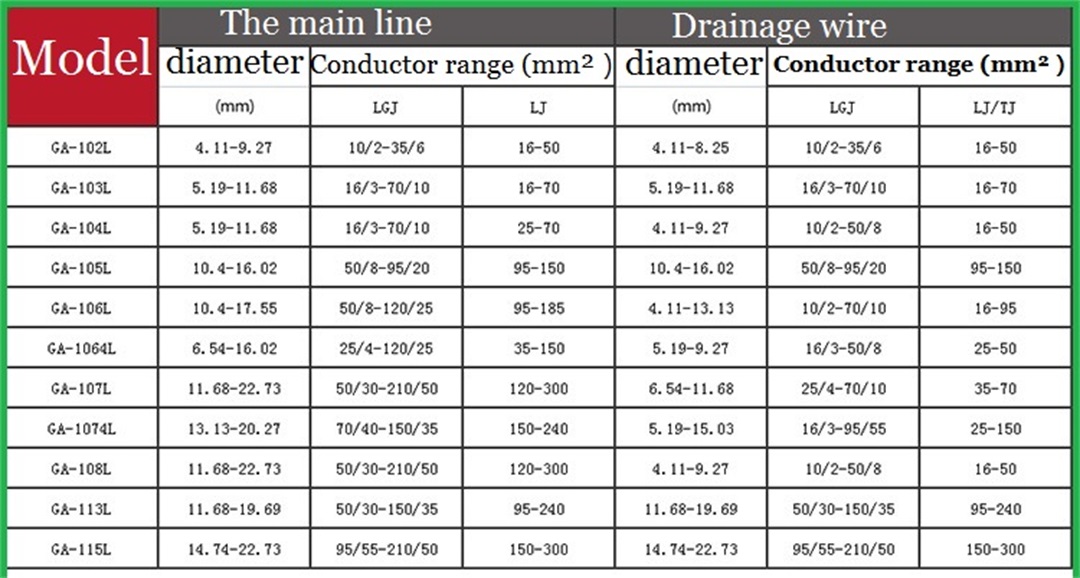

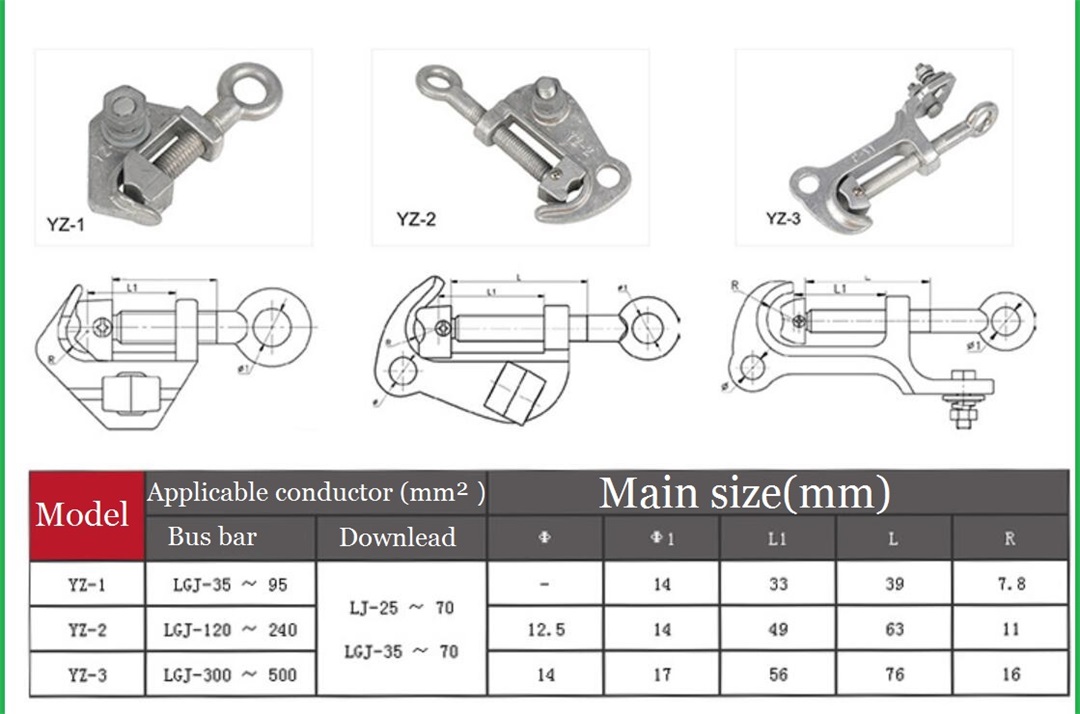

Technical parameters

Product features

1. High-strength material: high-strength special aluminum alloy material, anti-oxidation and corrosion resistance
2. Double spiral ring design: double bolts to fix the lead wire, ensuring a large contact area and tight connection
3. Easy installation: the product is lightweight and can be operated with a shooting gun 4. Optimized structural design: the extended main line clamp can
make the product easily hang on the wire
5. Easy installation: no need to cut off the power, live work can be carried out
