GTXGN 12KV 630A 1250A High voltage solid insulation ring network cabinet HV Switchgear

Short Description:

GTXGN-12 series solid insulated ring network cabinet is a fully insulated, fully sealed, and maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are molded with epoxy resin material with excellent insulation performance, and the vacuum interrupter, main conductive circuit, insulating support, etc.


Product Detail

Product Tags

Product Description

GTXGN-12 series solid insulated ring network cabinet is a fully insulated, fully sealed, and maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are molded with epoxy resin material with excellent insulation performance, and the vacuum interrupter, main conductive circuit, insulating support, etc. are organically combined into a whole, and the functional units are connected by a fully insulated solid busbar. Therefore, the entire switchgear is not affected by the external environment, and the reliability of the operation of the device and the safety of the operator can be ensured. Because the product has the advantages of full insulation, full sealing, and full shielding, it is especially suitable for use in areas with high altitude, high temperature, mixed heat, severe cold, and severe pollution.

形象11

Model Description

型号含义
形象2

Product technical parameters and External dimensions

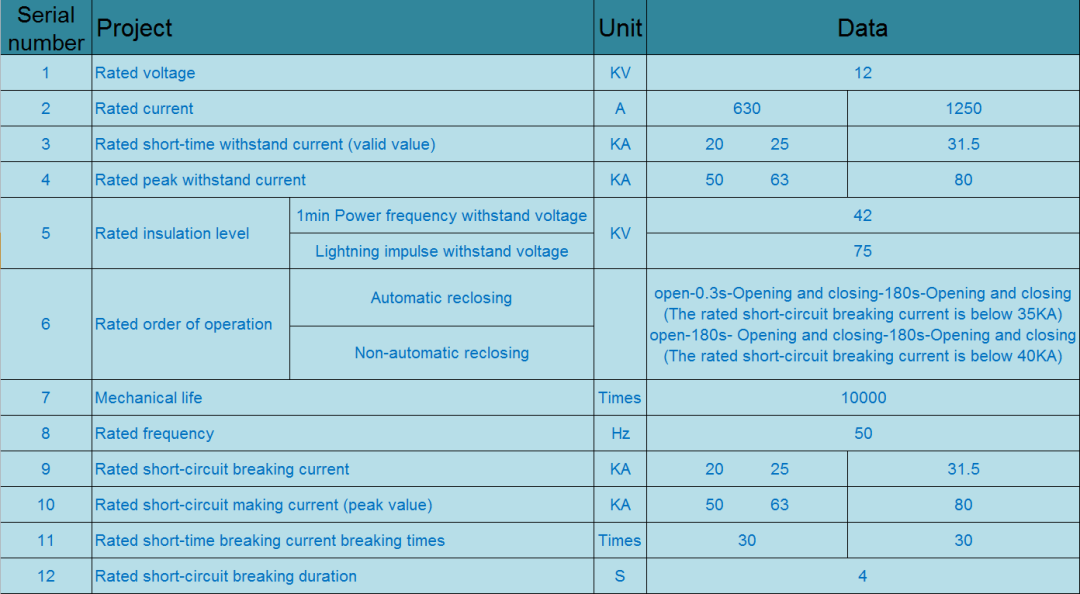

Circuit breaker technical parameters

断路器技术参数

Isolation grounding switch technical parameters

隔离接地开关技术参数

Switchgear Technical Parameters

开关设备技术参数

外形尺寸

形象13

Solution application

方案应用提升柜和隔离开关柜
方案应用计量柜(绝缘和普通型)
方案应用负荷开关熔断器组合电器柜
方案应用负荷开关母联柜
方案应用带隔离和不带隔离开关PT柜

Product structure features

Solid insulated fully enclosed switchgear: It is a single or combined main conductive circuit such as isolating switch, grounding switch, main busbar, branch busbar, etc., which is made of solid insulating material as the main insulating medium and conductive connection, and then wrapped and encapsulated with solid insulating medium. Or several modules with certain functions, which can be combined or expanded again with full insulation and full sealing performance. The three-position mechanism adopts an over-center spring design, which has the function of breaking and closing the load current, and can also realize manual and electric operation.

形象9

Environment condition

1. Ambient air temperature: -5~+40 and the average temperature should not exceed +35 in 24h.
2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.
3. Relative humidity should not exceed 50% at max temperature +40. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20. But in view of the temperature change, it is possible that moderate dews will produce casually.
4. Installation gradient not exceed 5.
5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.
6. Any specific requirement, consult with manufactory.

形象16

Product details

细节5
细节4

Products real shot

实拍_看图王

A corner of the production workshop

车间..

Product packaging

包装

Product application case

案例.
