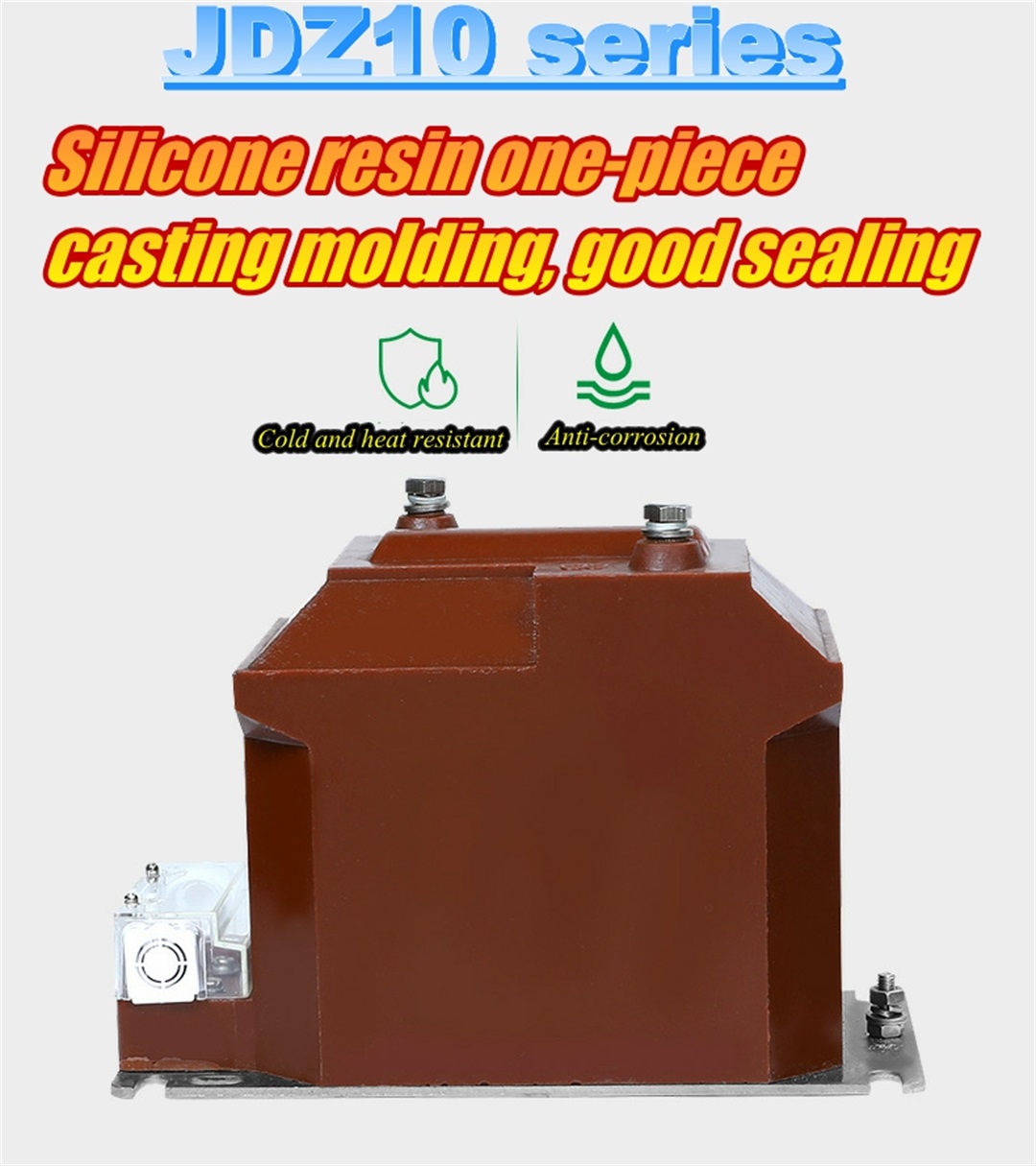

JDZ10 3/6/10KV PT voltage transformer for Complete set of switchgear

Product Detail

Product Tags

Product Description

形象2

Model Description

型号说明
形象8

Technical parameters and structure dimensions

参数

外形尺寸 (2)

接线

形象3

Product structure features and scope of use

This type of transformer is a pillar-type structure cast with epoxy resin. It adopts high-quality steel sheet and undergoes strict heat treatment. The iron core is cast with epoxy resin together with the primary winding and the secondary winding. The secondary outgoing terminal is installed with a Outgoing terminal box, there are three directions on the terminal box to lead out secondary wiring, and the protective cover has the function of preventing electricity theft
Ambient temperature:-10ºC-+40ºC
Relative humidity:The average humidity of a day should be no more than 95%. The average humidity of a month should be no more than 90%.
Earthquake intensity: not exceed 8 degrees.
Saturated vapor pressure the average pressure of a day should be no more than 2.2kPa; the average pressure of a month should be no more
Than1.8Kpa;
The height above sea level:≤1000 m (Except special requirements)
It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.

结构 (2)
形象4

Product details

细节

Products real shot

实拍

A corner of the production workshop

车间
车间

Product packaging

包装

Product application case

案例2
