NY 185-800mm² Tension clamp for heat-resistant aluminum alloy stranded wire

Short Description:

Product Detail

Product Tags

Product Description

Tension clamps are mainly used to fix conductors and lightning conductors in overhead power lines or substations, and connect them to tension insulators through connecting hardware, or to connect lightning arresters to towers. According to the different structure and installation method, it is divided into four categories: bolt type, compression type and wedge type, and pre-twisted type.

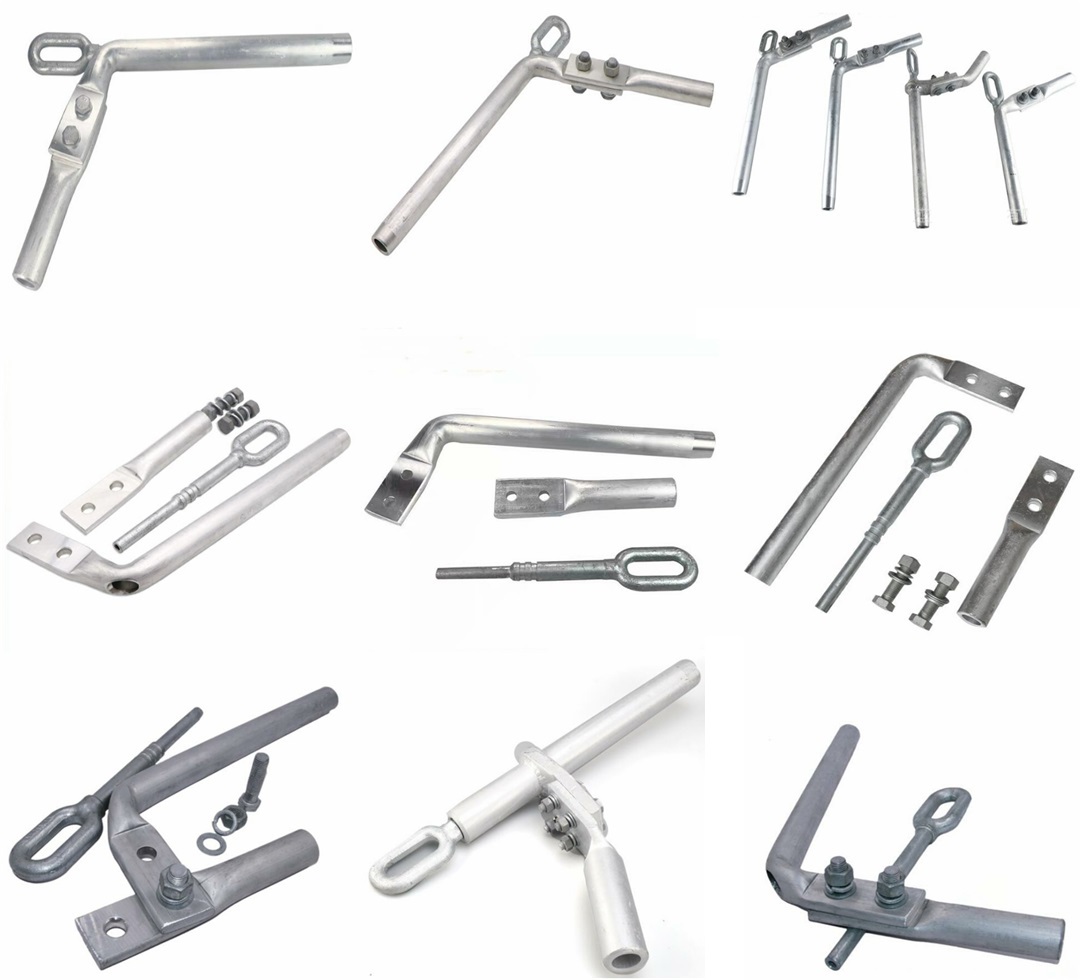

NY tension clamp (hydraulic type, steel anchor welding) is mainly used to fix the wire to bear the tension of the wire, and hang the wire to the hardware on the tension string or tower.

Technical parameters

Product features and Installation matters

Features：

a. The clip body is made of high-strength aluminum steel material.
b. The appearance is smooth and the service life is long.
c. Easy to install and use.
d. There is no hysteresis loss, and it is a low-carbon, energy-saving certified product.

Installation matters：

1. Clean one end of the crimped wire for about 1m and apply conductive grease.
2. Put the cleaned aluminum tube (outer diameter D) into the wire end and pull it 1m away from the wire end. 3. Use a vernier caliper or a tape measure to measure the size l 2 of the front end tube of the steel anchor, measure the length of the steel core to be stripped from the end O of the wire ON= l 2 + Δl mm (Δl is 15mm), make a mark, and tie it at a distance of 20mm from the mark Take the newly tied wire P. 4. Open a section of aluminum strand at the end O, and fasten the exposed steel core end with a binding wire. Then use a cutter (or aluminum wire stripper) to cut the outer and middle aluminum strands at the mark N. When cutting the inner aluminum strands, only cut to 3/4 of the diameter of each strand, and then break the aluminum strands one by one. When stripping the aluminum wire, it is strictly forbidden to bruise the steel core. )
5. Crimp the steel anchor
A. Select the steel pipe die "Cd#" that is consistent with the outer diameter d of the steel anchor. The installation instructions for the NY tension clamp in the substation should verify that the diagonal angle of the hexagonal die is dmm;
B. Press the steel After the core is cleaned, rotate and insert it into the bottom of the steel anchor along the stranding direction of the steel core, and the
end of the steel anchor exposes the steel core with a length of about 15mm; At this time, the wires on both sides should be
kept horizontal with the steel anchor, and consistent with the axis of the hydraulic press, so as to reduce the possible bending of the pipe after being compressed.
D. Crimp the front end pipe of the steel anchor. The direction of crimping is from the groove of the pipe to the pipe mouth. When applying pressure, the two adjacent molds
should overlap at least 5-10mm. After compression into a regular hexagon, the distance S between the opposite sides of the regular hexagon should be verified. The allowable value of S is: S=(0.866*0.993d)+0.2. After molding, use a standard caliper to check the size of the opposite side distance after pressing. (Note: The actual pressure of the hydraulic pump should not be lower than 80Mp, and when the pressure reaches the specified value, it should be maintained for 3-5s). Continue hydraulic operation only after the standard is met.
