S11-M Oil immersed transformer 3 phase 6kv 11kv 15 kv 33KV 100-3150kva oil immersed power transformer

Short Description:

The performances of model S11-M  series full-sealed oil-immersed distribution transformes conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper.It adopts radiator oil tank of corrugated shteet type or expansion type.


Product Detail

Product Tags

Product Description

As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of transformer.

This product is widely used in urban power grid reconstruction, residential district, factory, high-rise building, mining factory, hotel, shopping mall, airport, railway, oil field, wharf, highway and other outdoor places.

形象3

Model Description

.1
形象5

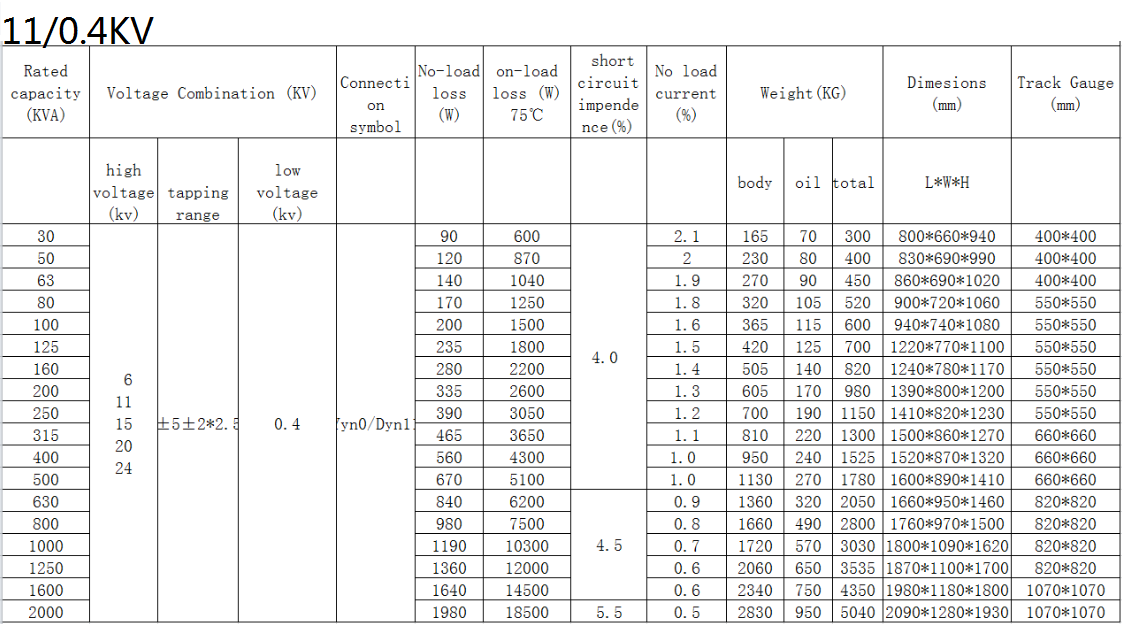

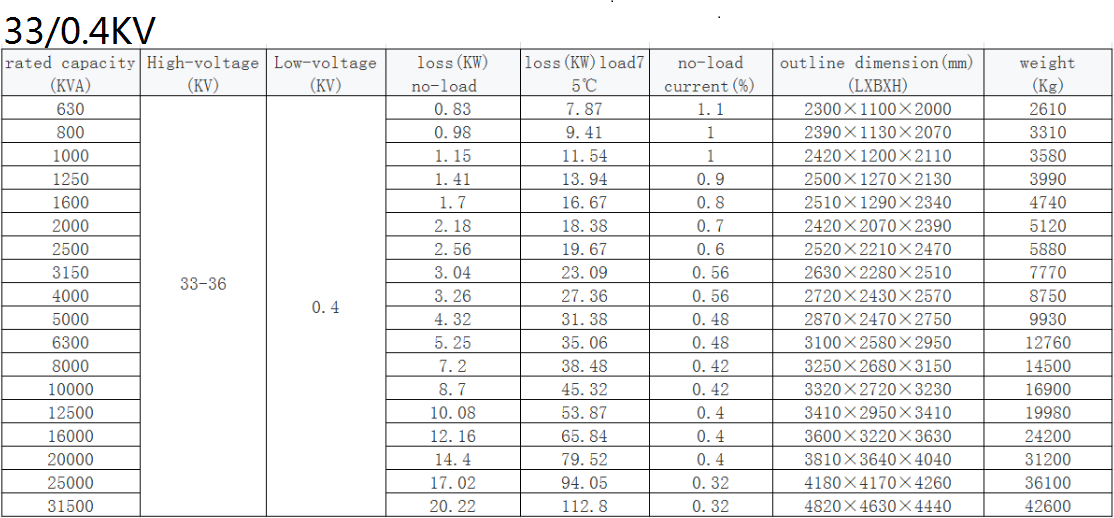

Product technical parameters and Structure description

参数1 参数2 结构

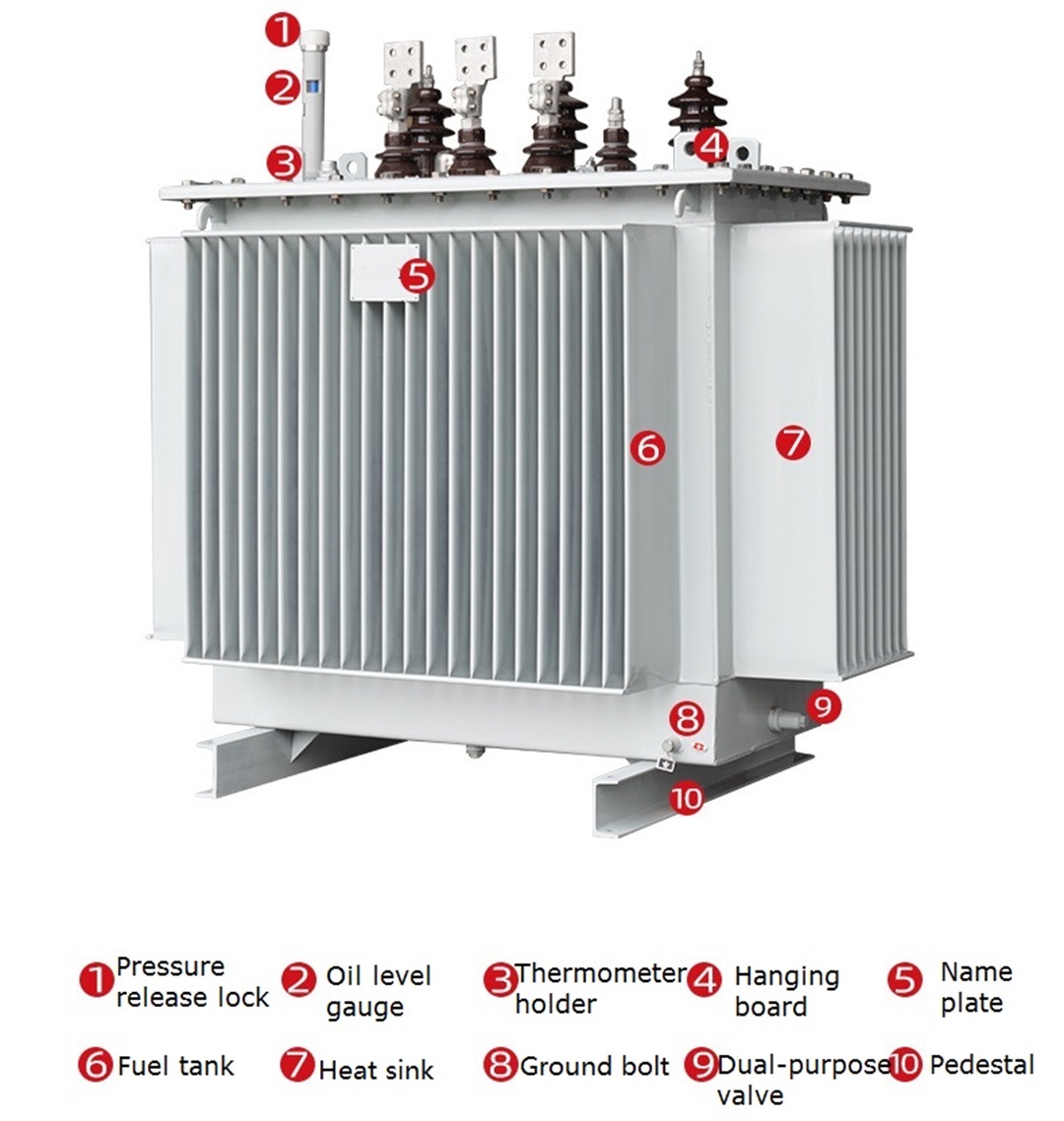

Product structure features

1. It’s an environment-friendly transformer with low no-load loss, no-load current and noise;
2. No oil storage box to save space;
3. Whole sealed with vacuum oil filling, high stability of insulation;
4. Adopts the corrugations on the oil tank as its heat-radiation parts, corrugations can expand or contract accord to the change of oil volume
5. Fully sealed structure, maintenance free;
6. With oil level gauge to ensure the safety running.

形象2

Environment condition

1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and severe vibration, indoors or outdoors.

形象6

Product details

细节

Products real shot

实拍

A corner of the production workshop

车间..

Product packaging

包装

Product application case

案例
