TSJA 50-2000KVA 380V 0-650V Three-phase oil-immersed self-cooling induction voltage regulator

Short Description:

Product Detail

Product Tags

Product Description

The induction voltage regulator can adjust the output voltage steplessly, smoothly and continuously under load conditions. It is mainly used for electrical and electrical testing, electric furnace temperature control, rectification equipment matching, generator excitation, etc. It is widely used in machinery manufacturing, chemical industry, textile, communication, military and other industries.
TDJA, TSJA oil-immersed voltage regulators adopt new chute technology, with good waveform, which meets the requirements of IEC standard for electrical test power supply. This series of products can adjust the load voltage smoothly and steplessly, with small distortion of output voltage waveform and long life. , Reliable operation, convenient use and maintenance, low loss, strong overload capacity, with two voltage regulation speeds, it is an ideal adjustable power supply for motors, transformers and other electrical appliances.

Model Description

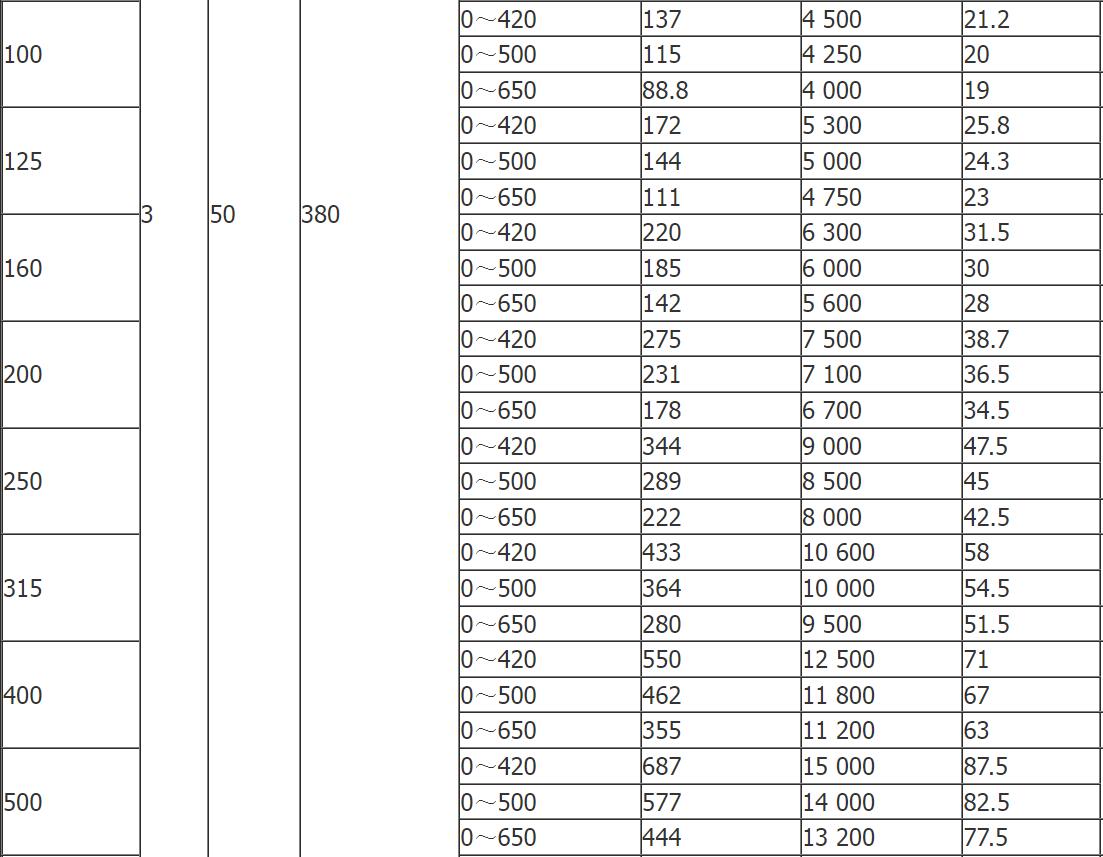

Technical parameters and structure dimensions

1. Product Name: Induction Voltage Regulator
2. Product model number: TSJA-
3. Rated capacity: 30KVA-1000kVA
4. Number of phases: three-phase
5. Frequency: 50Hz-60HZ
6. Rated input voltage: AC 380V
7. Output voltage range: AC 0-420V 0-630V 0-760V0-500V 0-430V 0-1200V can be customized according to requirements
8. Starting voltage: not greater than the value (5V)
9. Rated output current: rated A
10. Cooling method: oil immersion self-cooling
11. Insulation class: Class A
12. Wiring method: Y
13. Electrical method: induction auto coupling
14. Working mode: long-term continuous operation
15. Voltage regulation mode: electric, manual
16. Three-phase asymmetry: Under the condition that the three-phase input voltage is symmetrical and the rated value, the asymmetry of the three-phase no-load output voltage value of the voltage regulator is less than or equal to 1%
17. Voltage regulation time: ≤1.5min
18. Noise: <80dB
19. Dimensions: / Diameter 1550mm, Height 2150mm
20. Weight: /2600kg

Product features and scope of use

1. Non-contact adjustment, long service life;
2. Applicable to loads of various natures;
3. Strong overload capacity;
4 .Reliable operation, easy to use and maintain
Environmental conditions:
1. Altitude: ≤1000M
2. Ambient temperature: -10～+40℃
3. Relative humidity: the average relative humidity of the year and month is not more than 90%
4. Use environment: indoor
5. The installation site is well ventilated, without serious vibration and turbulence, and without gas, steam, dust, dirt, chemical deposits and other explosive and corrosive media that seriously affect the insulation of the regulator.

Product selection and Ordering information

Selection:
1. The user's voltage situation The user is required to detect the no-load voltage value and the load voltage value.
2. The distance between the transformer and the electrical equipment The user needs to measure the distance between the user's transformer and its electrical equipment.
3. The user's cable situation The user needs to check the situation of the cable used by himself. Generally, it is necessary to match the total power of the equipment.
4. The total power of the starting equipment The user should check the total power of the equipment used by himself.
According to the above information, the user can choose the corresponding model product or propose customization.
Ordering instructions:
When ordering, the product model, capacity, rated output voltage, rated input voltage, power input and output position, etc. should be stated;
If there is a special request, it must be explained in detail, and the consumption can be designed according to the user's request;
